THE INVISIBLE LIGHT

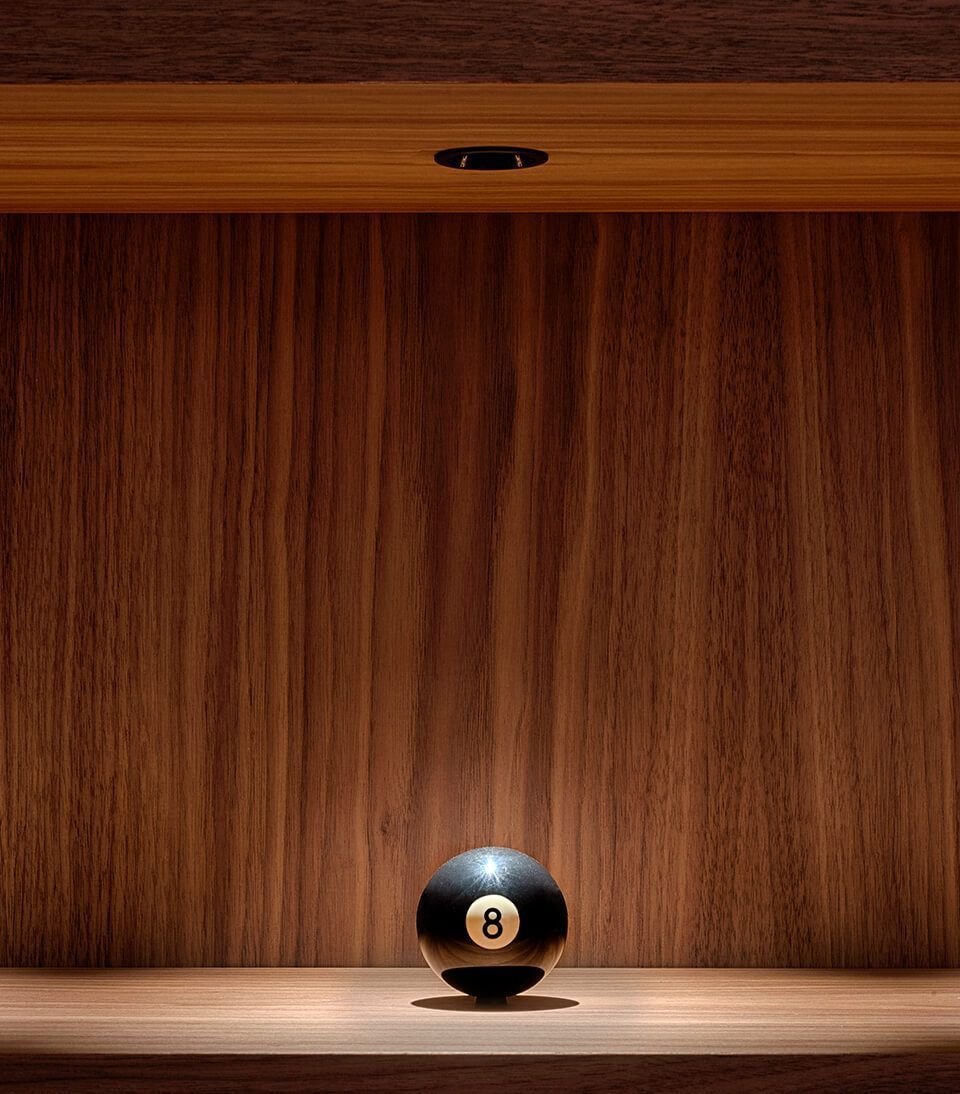

SOME BEAUTIFUL EXAMPLES OF THE SHOT LIGHT USED IN PROJECTS.
SEE BELOW FOR THE DIFFERENT VARIATIONS FROM THR shot LIGHT :
Colour
Black / Black-Metallized gold / White / White-Metallized gold
Light source :LED
Gross luminous flux : 190 lm / 210 lm / 250 lm
Power : 2,1 W
Colour temperature : 700K / 3000K / 4000K
Colour Rendering Index : CRI>90
Chromatic stability : MacAdam Step 3
Light beam angle : 19° / 38°
Lighting efficiency : 86% / 90% / 92%
Dimming : No Dim
Driver : Included
LED lifespan : L80B10 >60.000h
Sealing : IP20 / IP65
Recess measurements : Ø38mm
Materials : Aluminium / Acrylonitrile Butadiene Styrene / Polycarbonate
SHOT LIGHT
CHECK OUT THE FULL RANGE OF THE SHOT LIGHT
Colour : Black / Black-MetalliSed gold / White
Light source : LED
Gross luminous flux : 190 lm / 210 lm / 250 lm
Power : 2.1 W
Colour temperature : 2700K / 3000K / 4000K
Colour Rendering Index : CRI>90
Chromatic stability : MacAdam Step 3
Light beam angle : 19° / 38°
Lighting efficiency : 90% / 92%
Dimming : No Dim
Driver : Included
LED lifespan : L80B10 >60.000h
Sealing : IP20
Recess measurements : Ø43mm
Materials : Aluminium / Acrylonitrile Butadiene Styrene / Polycarbonate
SHOT LIGHT TRIMLESS
Colour : Black / Black-Metallized gold / White / White-Metallized gold
Light source : LED
Gross luminous flux : 675 lm / 700 lm / 710 lm / 910 lm / 940 lm / 960 lm / 1230 lm / 1280 lm / 1300 lm
Power : 5 W / 6,5 W / 10,3 W
Colour temperature : 2700K / 3000K / 4000K
Colour Rendering Index : CRI>90
Chromatic stability : MacAdam Step 2
Light beam angle : 37° / 38°
Lighting efficiency : 78% / 86%
Dimming : No Dim, DALI / Push
Driver : Included
LED lifespan : L80B10 >60.000h
Sealing : IP20 / IP65
Recess measurements : Ø75mm
Materials : Aluminium / Acrylonitrile Butadiene Styrene / Polycarbonate
SHOT LIGHT MEDIUM
Light source : LED
Gross luminous flux : 675 lm / 700 lm / 710 lm / 910 lm / 940 lm / 960 lm / 1230 lm / 1280 lm / 1300 lm
Power : 5 W / 6,5 W / 10,3 W
Colour temperature : 2700K / 3000K / 4000K
Colour Rendering Index : CRI>90
Chromatic stability : MacAdam Step 2
Light beam angle : 38°
Lighting efficiency : 86%
Dimming : No Dim, DALI / Push
Driver : Included
LED lifespan : L80B10 >60.000h
Sealing : IP20
Recess measurements : Ø85mm
Materials : Aluminium / Acrylonitrile Butadiene Styrene / Polycarbonate
SHOT LIGHT MEDIUM TRIMLESS
Light source : LED
Gross luminous flux : 675 lm / 700 lm / 710 lm / 910 lm / 940 lm / 960 lm / 1230 lm / 1280 lm / 1300 lm
Power : 5 W / 6,5 W / 10,3 W
Colour temperature : 2700K / 3000K / 4000K
Colour Rendering Index : CRI>90
Chromatic stability : MacAdam Step 2
Light beam angle : 38°
Lighting efficiency : 86%
Dimming : No Dim, DALI / Push
Driver : Included
LED lifespan : L80B10 >60.000h
Sealing : IP20
Recess measurements : Ø85mm
Materials : Aluminium / Acrylonitrile Butadiene Styrene / Polycarbonate
SHOT LIGHT MEDIUM ASYMMETRIC
ALSO AVAILABLE IN TRIMLESS VERSION
TRIMLESS IMAGES
Colour : Black / White
Light source : LED
Gross luminous flux : 1490 lm / 1600 lm / 1720 lm / 2010 lm / 2160 lm / 2320 lm / 2600 lm / 2780 lm / 3000 lm
Power : 11,8 W / 17,5 W / 25,3 W
Colour temperature : 2700K / 3000K / 4000K
Colour Rendering Index : CRI>90
Chromatic stability : MacAdam Step 2
Light beam angle : 18° / 49° / 50°
Lighting efficiency : 86% / 89%
Dimming : No Dim, DALI, Push
Driver : Included
LED lifespan : L80B10 >60.000h
Sealing : IP20 / IP65
Recess measurements : Ø121mm
Materials : Aluminium / Acrylonitrile Butadiene Styrene / Polycarbonate
SHOT LIGHT BIG
